Roof pack filling machine

Ultra-clean filling _5

Roof pack filling machine

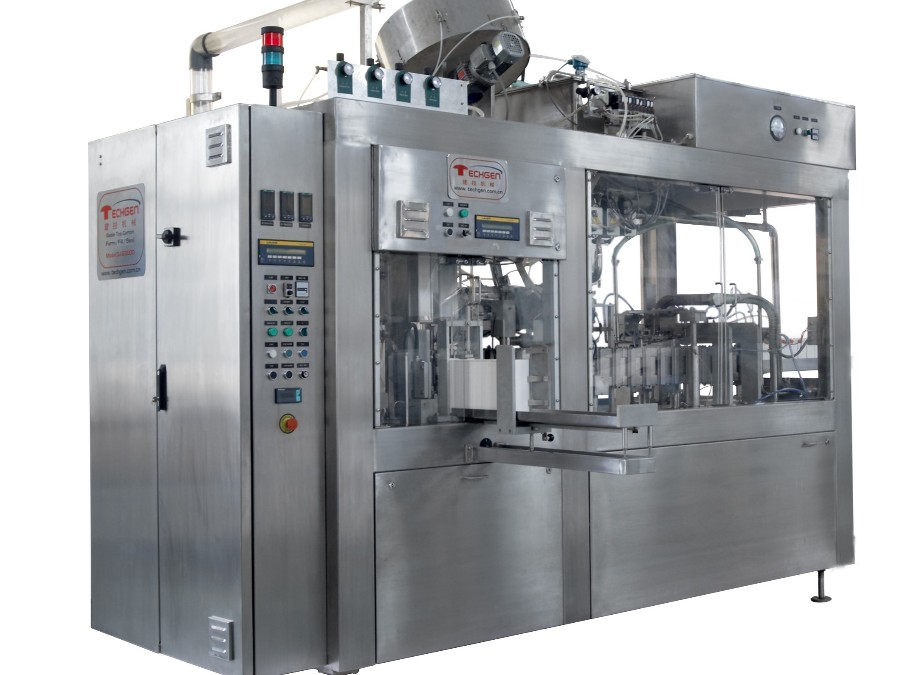

Roof pack filling machine(Can be sealed by the)Ultrasonic cover welding ultra-clean type with hydrogen peroxide dry sterilizing positive pressure aseptic laminar flow cover can be filled with granular beverage electronic flowmeter or piston filling hot filling or cold filling with date printing Automatic opening and sealing after embossing

production : 3,000 package／hours, 6,000 package／hours,

inquiry

Product details

Technical parameters Technical parameters

The production efficiency	90%	Filling range	10ml
Filling accuracy	±0.5%	Filling accuracy	±0.5%
The engine power	about220V 50Hz	Air pressure	0.6~0.8Mpamachine
The total gas consumption	1cubic/minutes	packing	Membrane charter

Electrical configuration Electrical configuration

PLC	South KoreaLSMotion control system	Touch screen	schneider
Pneumatic components	SMC	Circuit breaker, AC contactor	Honeywell
The inverter	Danfoss, Denmark	Servo motor, servo driver	South KoreaLSAbsolute motion servoing
Photoelectric sensor	Germany Lloyd test	Switch power supply, button, alarm light	Schneider brand of France

Product features Product features

01 Material contact parts are made of stainless steelSUS316And zirconia ceramic material.
02 Using robot servo system with motion controller control, fast automatic quantitative filling; Rotary valve made of zirconia material without sealing ring, cleaning without dead Angle.
03 Adopt motion controller andHMIMan-machine operation interface, you can call parameters in the operation interface to reduce manual participation to adjust the mechanical position.
04 The robot special servo system, high filling precision, follow the positioning, if the servo system alarm without power restart, one key can reset.
05 Filling action is brisk, so that there is bottle filling, high production efficiency. The disassembly and assembly of material contact parts are convenient for cleaning without tools and no dead corner. The individual filling can be flexibly applied and the whole machine can be moved to the cleaning area for independent cleaning.
06 The whole machine adopts stainless steel frame structure, protective door adopts explosion-proof tempered glass or plexiglass transparent material,SUS304Stainless steel countertops.
