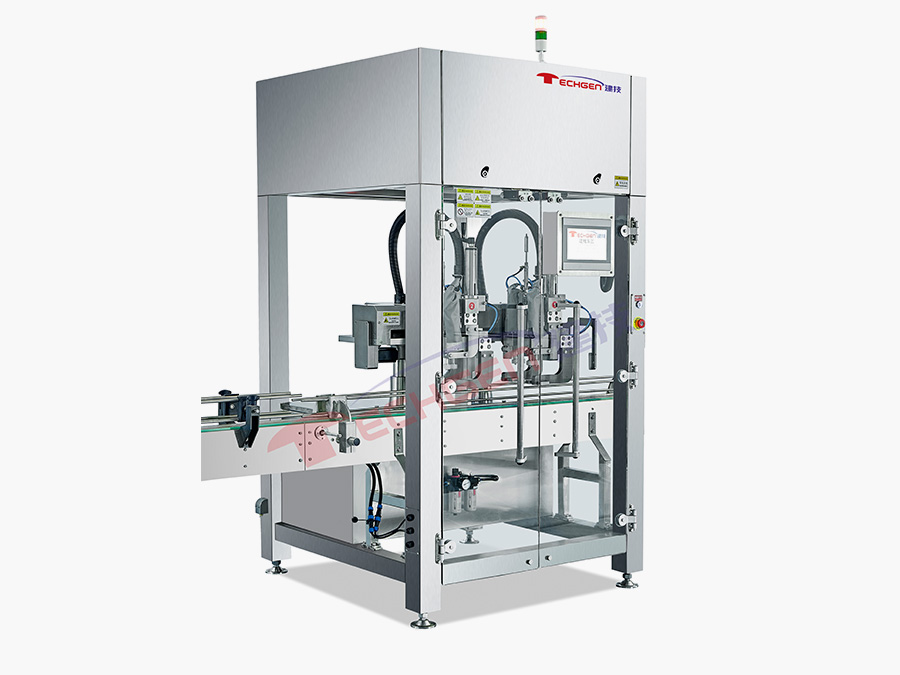

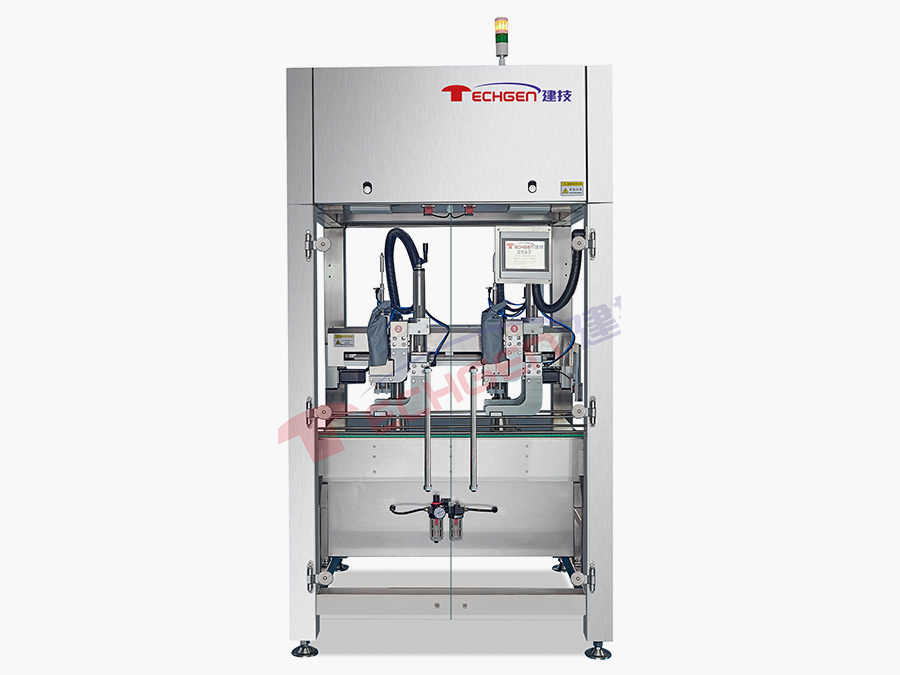

Tracking capping machine

Tracking capping machine

Tracking capping machine

Tracking capping machine

Tracking capping machine

Tracking capping machine

Tracking capping machine

Tracking capping machine

Tracking capping machine

Tracking capping machine

Tracking capping machine

The whole machine adopts stainless steel frame structure, protective door adopts explosion-proof tempered glass or plexiglass transparent material,SUS304Stainless steel table

inquiry
  • Product details
Technical parameters Technical parameters
The production efficiency 90% Filling range 10ml
Filling accuracy ±0.5% Filling accuracy ±0.5%
The engine power about220V 50Hz Air pressure 0.6~0.8Mpamachine
The total gas consumption 1cubic/minutes packing Membrane charter
Electrical configuration Electrical configuration
PLC South KoreaLSMotion control system Touch screen schneider
Pneumatic components SMC Circuit breaker, AC contactor Honeywell
The inverter Danfoss, Denmark Servo motor, servo driver South KoreaLSAbsolute motion servoing
Photoelectric sensor Germany Lloyd test Switch power supply, button, alarm light Schneider brand of France
Product features Product characteristics
  • 01 Adopt motion controller andHMIMan-machine operation interface, you can call parameters in the operation interface to reduce manual participation to adjust the mechanical position.
  • 02 The whole machine adopts stainless steel frame structure, protective door adopts explosion-proof tempered glass or plexiglass transparent material,SUS304Stainless steel countertops.

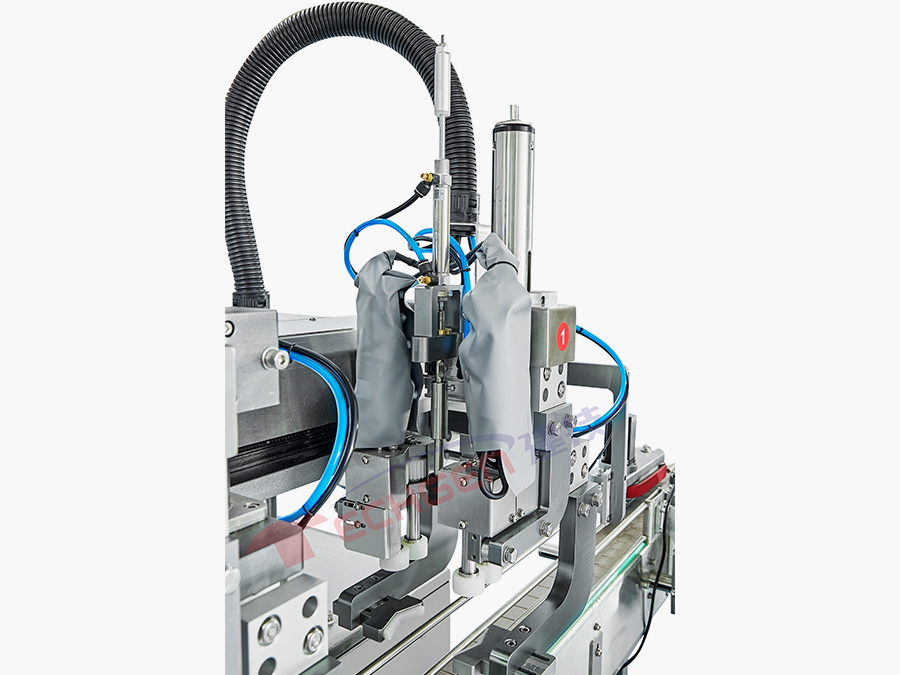

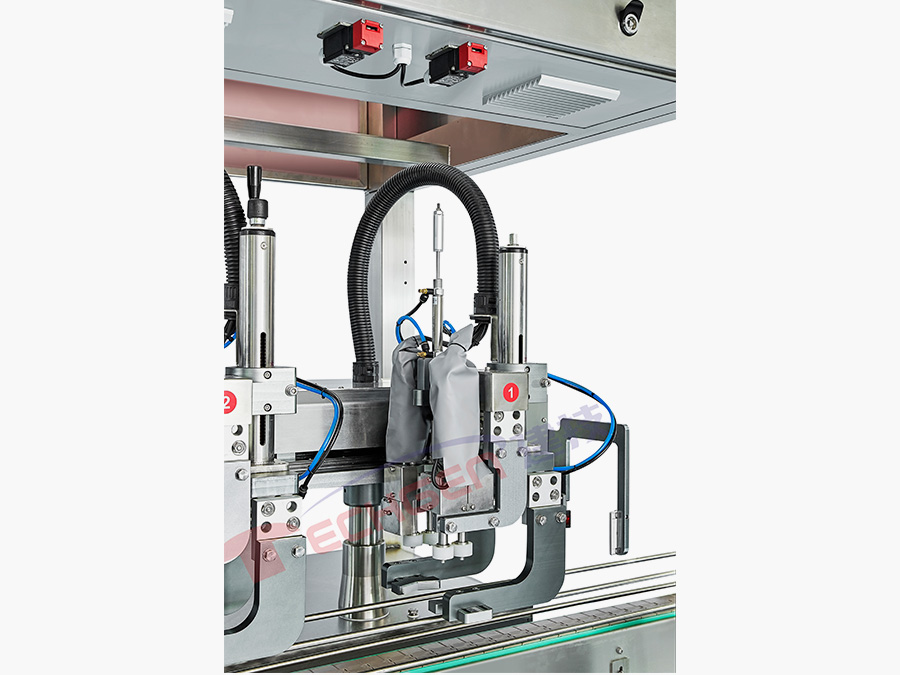

  • 03 Using motion control system and servo motor to do tracking capping, bottles do not need to stop, automatically track the position of bottles to do automatic capping, product torque: 5-40kgf.cm ±3 kgf.cm, the torque can be adjusted.
