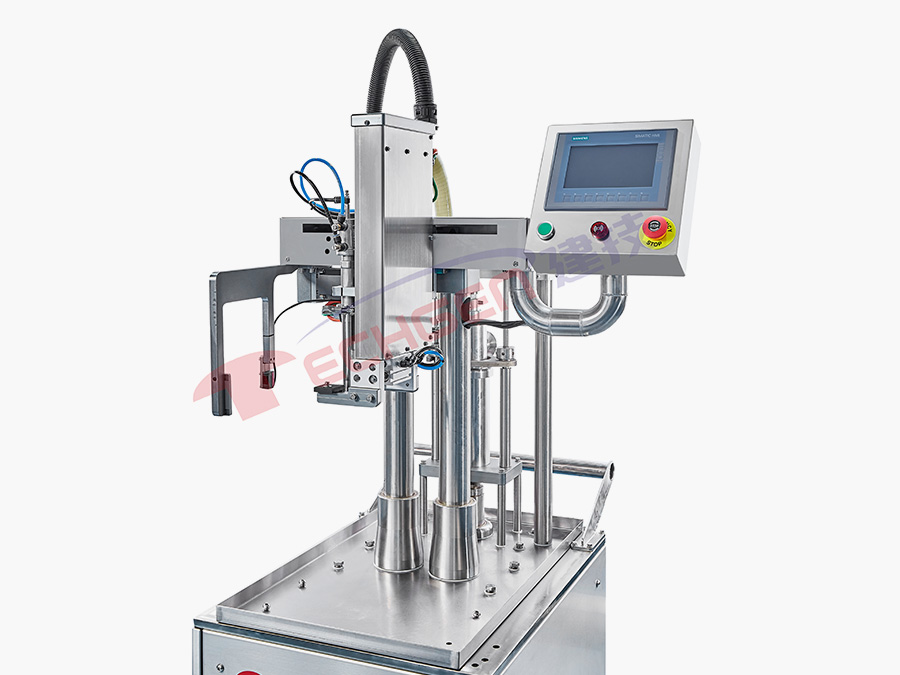

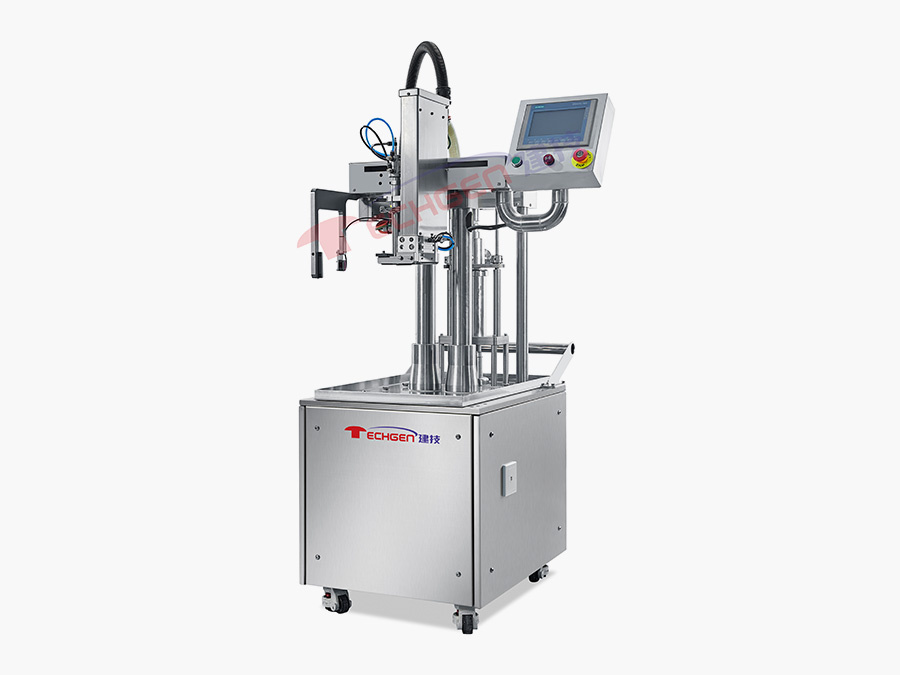

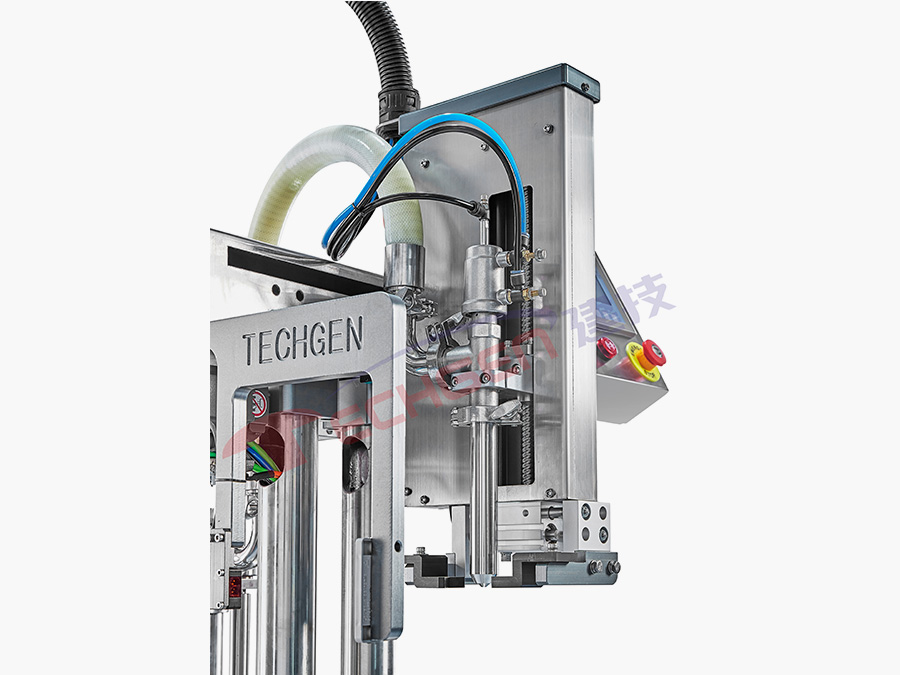

Portable tracking filling machine

Portable tracking filling machine

Portable tracking filling machine

Portable tracking filling machine

Portable tracking filling machine

Portable tracking filling machine

Portable tracking filling machine

Portable tracking filling machine

Portable tracking filling machine

Portable tracking filling machine

Portable tracking filling machine

Jianbang mobile tracking filling machine can meet most of the presentOEM/ODMThe demand of daily chemical factory is carried out according to capacity and order quantityNSets are randomly combined to effectively meet the production needs of daily chemical products in small batches and multiple batches, and to achieve the goal of high production efficiency and low production cost.

inquiry
  • Product details
Technical parameters Technical parameters
Filling quotas Single head capacity 20-25BPM(Depending on material and filling volume)
Filling range 10-100ml Filling accuracy ±0.5%
The engine power about220V 50Hz Air pressure 0.6~0.8Mpa
Gas consumption 1cubic/minutes Height of operating surface 850±50mm
Machine size (length*wide*High) 600*800*1500mm The material 304Stainless steel, zirconia ceramics
Electrical configuration Electrical configuration
PLC South KoreaLSMotion control system Touch screen Schneider of France
Pneumatic components SMC The circuit breaker Schneider of France
The inverter Danfoss, Denmark Servo motor, servo driver South KoreaLSAbsolute motion servoing
Photoelectric sensor Germany Lloyd test Switch power supply, button, alarm light Schneider of France
Product features Product features
  • High quality material

    High quality material

    Material contact parts are made of stainless steelSUS316And zirconia ceramic material

  • Safety and environmental protection

    Safety and environmental protection

    Zirconia ceramic piston cylinder and rotary valve, high filling precision, no traditional sealing ring, safety and health, zero pollution to materials

  • One key operation

    One key operation

    Adopt motion controller andHMIMan-machine operation interface, you can call parameters in the operation interface

  • Accurate positioning

    Accurate positioning

    Adopt robot absolute value servo system, high filling precision, accurate positioning

  • Production efficiency

    Production efficiency

    Filling action is brisk, so that there is bottle filling, high production efficiency

  • Strong adaptability

    Strong adaptability

    Both bottle mouth and submerge segmental filling mode, suitable for the production of a variety of materials

  • Clean and convenient

    Clean and convenient

    Material contact parts disassembly without auxiliary tools, easy cleaning without dead Angle

  • Flexible job

    Flexible job

    Mobile configuration, convenient combination of multiple sets, flexible operation, effective and reasonable use of space

Product advantage Product advantages
Reduce artificial

Reduce artificial

Mechanical replacement of labor while reducing the intensity of personnel work, effectively solve the problem of difficult recruitment enterprises.

To save space

To save space

Mobile, to achieve multi-energy production line, to solve the most of the factory site tension, narrow reality.

To ensure the quality

To ensure the quality

No traditional sealing ring, easy to clean with material contact parts, no dead Angle, avoid foreign matter.

Promote efficiency

Promote efficiency

Movable free combination, quick parts disassembly, fault man-machine interface reset with one key, effectively save replacement items and cleaning time.
