Location: Home » Product » Pretreatment system » UHT sterilizer » UHT sterilizer

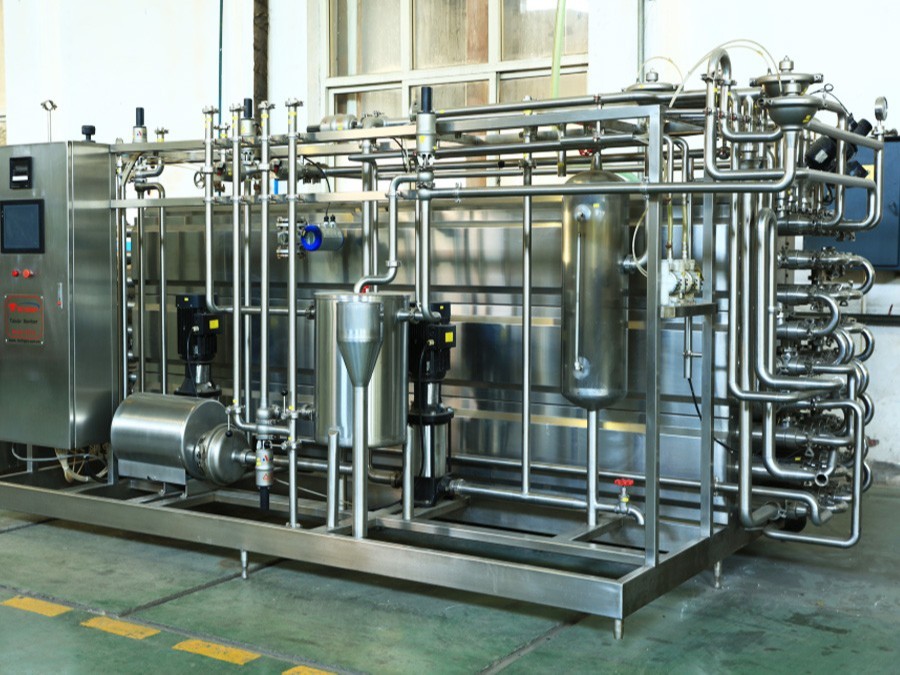

UHT sterilizer

UHT sterilizer

UHT sterilizer

UHT sterilizer

UHT sterilizer

Ultra-clean filling _5

UHT sterilizer

UHT sterilizer

UHT sterilizer

UHT sterilizer

UHT sterilizer

Purpose: For milk and coconut milk Peanut milk With or without fruit drinks

Sterilization effect of production: commercial asepsis

Production capacity:3-30 Tons of/hours/Taiwan

Sterilization temperature:142℃

Process flow:

feed5℃

homogeneous 65℃

Preliminary sterilization 95℃/30S

The sterilization 142℃

Heat preservation 4 seconds

cooling 25℃

 filling

inquiry
  • Product details
System composition system composition
Tube type automatic sterilizationUHT + homogeneous Sterilization temperature:95~143℃
Adopt full automaticPLCcontrol High temperature alarm, low temperature reflux to the material barrel
Sterilization temperature control Outlet temperature control
Self-cleansing function CIP/SIP
Production capacity productive power
Production capacity

5,000 LPH

8,000 LPH

10,000 LPH

20,000 LPH
